Connect

Connect embeds the same checkout as Checkout in an overlay on your own page, instead of redirecting the customer to https://pay.boomfi.xyz. The checkout runs in an iframe served by BoomFi: payment details, wallet connections, and payment state never touch your page.

Choosing a UI mode

A checkout session’s ui_mode picks one of three ways to present the same checkout:

`ui_mode`	Where it runs	How the customer returns
`Hosted`	Full page on `https://pay.boomfi.xyz`	`success_url` / `cancel_url` redirect
`Lite`	Same lightweight checkout as `Embedded`, but as its own standalone page — not framed	`success_url` / `cancel_url` redirect
`Embedded`	The same lightweight checkout, framed inside your page via `@boomfi-sdk/connect-web`	Stays on your page; you get `return_url` instead

This page covers Embedded, which is the default ui_mode for a session and what @boomfi-sdk/connect-web opens. For Hosted, see Checkout. Lite is the standalone form of the same lightweight checkout, for when you want that UI without embedding it — ask your BoomFi contact for the setup if you’re choosing Lite, since it isn’t covered by the rest of this page.

0. Get Connect enabled for your org

Connect is enabled per organisation for pilot integrations, and nothing below this line is reachable until it is: every /checkout/* call 404s, and the Checkout tab under Settings doesn’t even appear in your dashboard’s navigation. Contact your BoomFi representative first and confirm they’ve turned it on before you try anything else.

How it fits together

You register the origin your checkout page is served from
Your server creates a checkout session and gets back a client secret
Your page installs @boomfi-sdk/connect-web and opens the overlay with that secret
The customer completes payment inside the overlay
Your backend receives a webhook and updates order state

1. Register a checkout origin

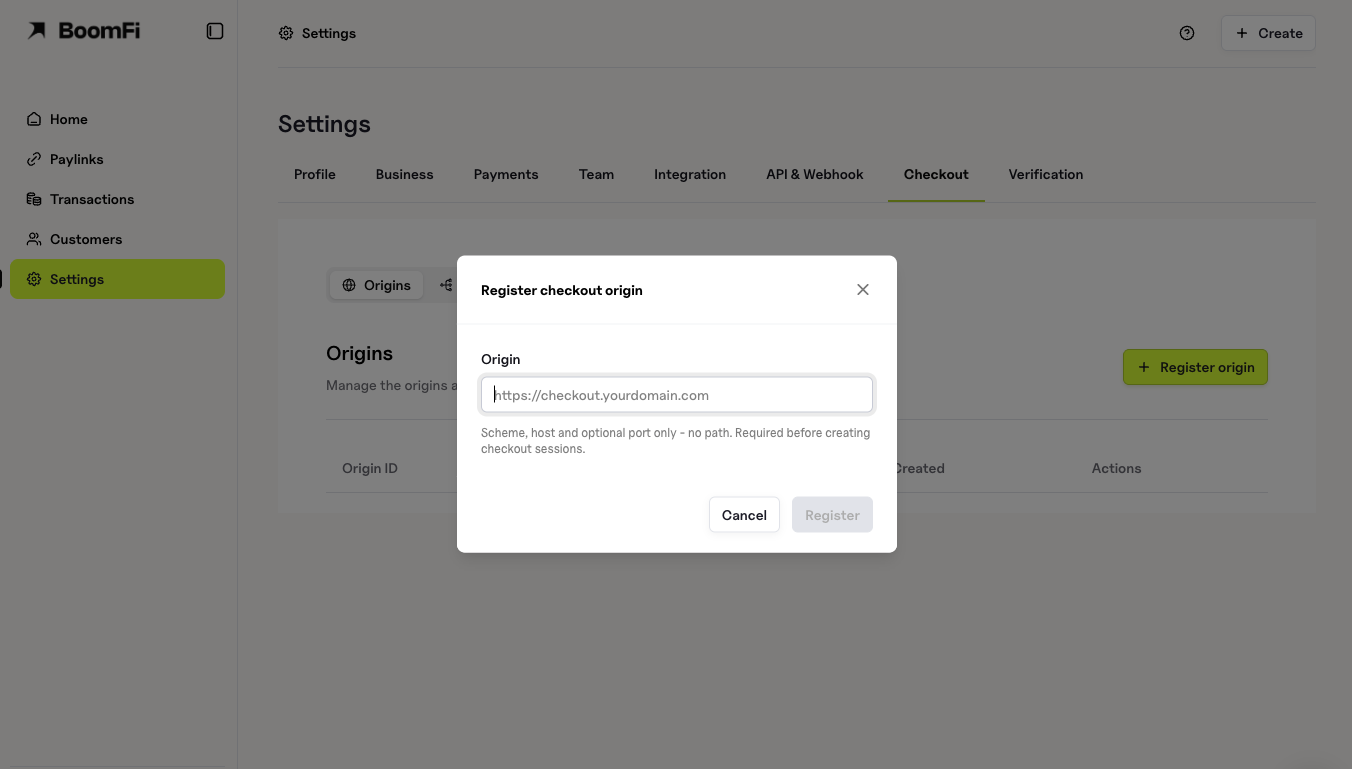

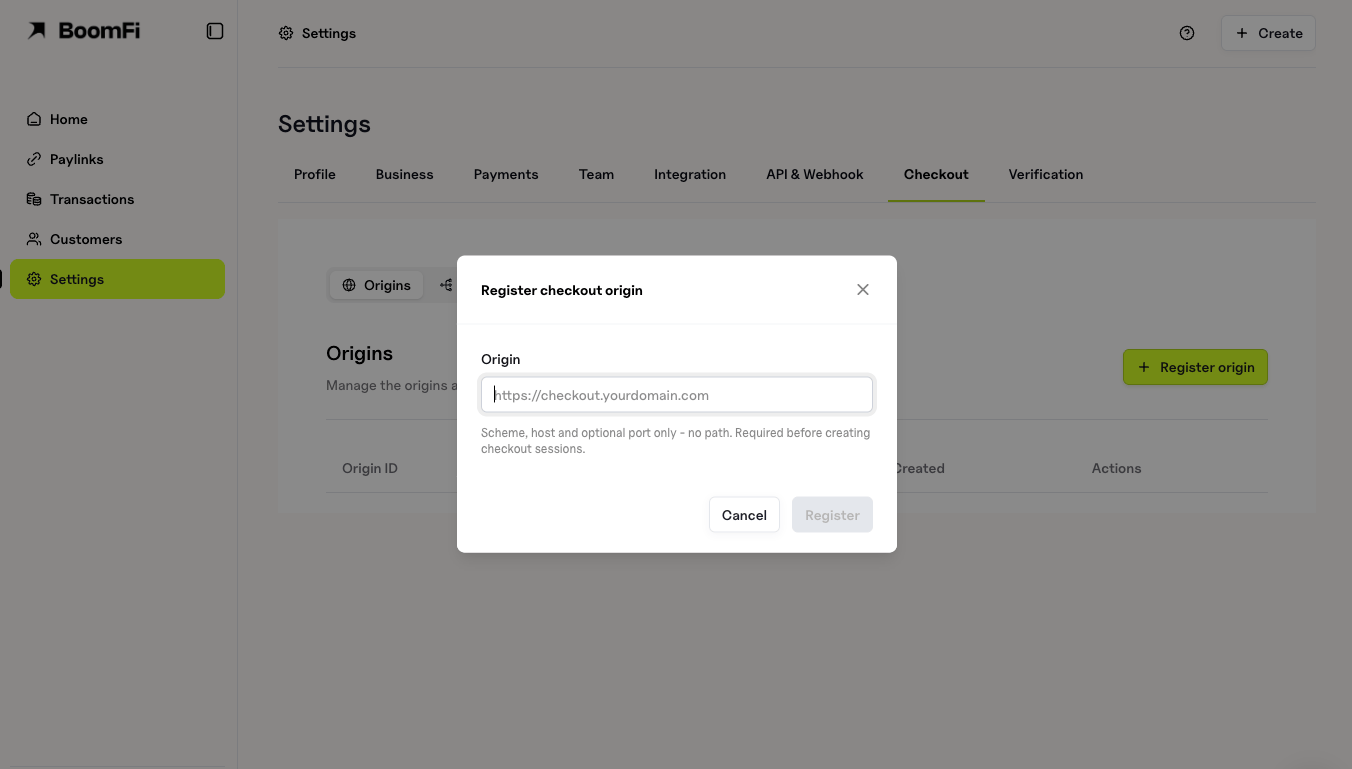

Once per org, before the first session — the origin your checkout page is served from. Add it in https://app.boomfi.xyz/dashboard/settings/checkout, under Origins:

Or from your server:

curl -X POST "https://mapi.boomfi.xyz/v1/checkout/origins" \
  -H "X-API-KEY: sk_test_xxx" \
  -H "Content-Type: application/json" \
  -d '{
    "origin": "https://shop.example"
  }'

origin must be a bare scheme://host[:port] — no path, query, fragment, wildcard, or IP literal. Register every origin you serve a checkout page from (www, checkout, staging) separately. Re-registering an origin you already have re-enables it rather than failing. If your site sends a Content Security Policy, also allow the checkout as a frame source, or the overlay opens empty with a frame-ancestors error in the console:

frame-src https://pay.boomfi.xyz;

Use https://pay-test.boomfi.xyz for the test environment.

2. Create a checkout session

From your server, never your page — it needs your API key:

curl -X POST "https://mapi.boomfi.xyz/v1/checkout/sessions" \
  -H "X-API-KEY: sk_test_xxx" \
  -H "Content-Type: application/json" \
  -d '{
    "payment_link_id": "2ZxK1qLm9vQnR7sT4uY6wB8cD0e",
    "allowed_origin": "https://shop.example",
    "merchant_request_id": "dep_92817"
  }'

Notable fields

Field	Description
`payment_link_id`	Required for the overlay to have a price to render.
`allowed_origin`	Omit when you have registered exactly one origin; required when you have registered more than one. Must match a registered origin.
`merchant_request_id`	Your idempotency key. Repeating one with the same parameters returns the existing session with `client_secret` absent.
`customer_reference`	Your identifier for the payer. Send a distinct one per payer — two concurrent payers on one payment link can otherwise collide.
`amount` / `currency`	Only if set, and must match the payment link’s own price.

client_secret in the response is returned once, by this call only — it is stored only as a digest, so a repeated create returns the session without it. Pass it straight to your page; do not log it.

3. Install the SDK and open the overlay

npm install @boomfi-sdk/connect-web

import { init } from "@boomfi-sdk/connect-web";

const connect = init({ environment: "test" }); // "production" once you're live

// clientSecret is what your server got back in step 2.
connect.open({
  clientSecret,
  onReady: () => console.log("checkout visible"),
  onClose: ({ reason, resumable }) => {
    // resumable: true means a payment was in flight — offer a way back with
    // connect.resume(). Ask your server what happened; do not infer it from
    // reason alone (see the note below).
  },
  onError: ({ message, code }) => {
    // The overlay stays open showing `message` — see Troubleshooting below.
  },
});

environment must match where you created the session — a test-environment secret opened against production (or the reverse) fails with session_not_found.

A payer who just paid and closed the overlay, and one who changed their mind, both arrive at onClose as reason: "user_requested", resumable: false — identical. Treating that as “cancelled” tells someone who paid that they did not. Say something true either way (“checking your payment”) and confirm from your server (see Confirm the payment).

Call connect.canResume on page load, before the payer has to ask — a payer can return to a live checkout up to 30 days after it was created if a payment is attached, so this is not only for a page reload moments later. By default open() draws a modal: backdrop, page scroll lock, focus trap, and a close button. Pass container to mount the checkout inline into an element on your own page instead — no backdrop, no scroll lock, no focus trap, no close button. The frame fills whatever size and position container already has, the same as any other iframe you embed yourself:

connect.open({
  clientSecret,
  container: document.getElementById("checkout-slot"),
});

Add unstyled: true to go one step further and drop the SDK’s own sizing and loading indicator too — a bare <iframe> you size and load-state entirely yourself:

connect.open({
  clientSecret,
  container: document.getElementById("checkout-slot"),
  unstyled: true,
});

Inline mount trades away what the overlay’s own UI would otherwise do for you:

No close affordance. There’s no backdrop or button to close it with — the only way to take the checkout down is your own code calling connect.close() or connect.destroy().
No confirm-before-close on a payment in flight. The overlay’s “your payment is still in progress” prompt has nowhere to render without a backdrop, so close()/destroy() act immediately, with no confirmation, exactly as today. onClose still fires with reason: "merchant_requested", resumable: true — decide what to tell the customer from that, same as you would for the overlay’s resumable.
resume() needs the container again. Only the client secret survives a page reload; a DOM element cannot. Pass container to connect.resume({ container }) the same way you did to open(), or you get the default modal back instead of your inline slot.

What the customer sees

Connect’s pilot payment rail is Wallet Transfer: the customer picks a chain and token from the ones your payment link’s plan quotes, and the checkout shows a deposit address (and QR code) to send the payment to. There is nothing your page does here — it is entirely inside the BoomFi iframe. The checkout polls for the on-chain deposit and moves to a success state once it confirms. Confirmation time is chain-dependent and can run from minutes to several hours, which is why a session with a payment attached stays usable well past its expires_at — a customer who left to fund a wallet can come back to a live checkout later.

Confirm the payment

Treat your webhook as the only source of truth for whether the payment succeeded — see Verify Webhook Signatures and Event Types. Fulfil the order only on Payment.Updated with status: Succeeded; onReady, onClose, and onError are UI signals only and are lost if the tab closes or the connection drops mid-payment. The webhook does not carry the checkout session’s ID, so it alone does not tell you which of your own orders it belongs to. Read the session back to get the join key:

curl "https://mapi.boomfi.xyz/v1/checkout/sessions/{sessionId}" \
  -H "X-API-KEY: sk_test_xxx"

After onClose, read the session and store its payment_id against your order — that is what a later webhook joins on.
For a payer who never comes back, run this on a schedule against sessions that are still Open with a payment attached, so a deposit that lands after the tab closed still reaches the right order.

A session with a payment_id and status still Open is a payment in flight, not a failure.

Troubleshooting

Symptom	Cause	Fix
Every `/checkout/*` call returns 404, valid API key	Connect is not enabled for this org yet	Contact BoomFi to enable it for your org
`POST /checkout/sessions` returns 400 with `origin_not_registered`	The org has no registered origin, or the one sent is not one of them	Register it (step 1); check scheme, host, and port match exactly
Overlay opens but stays empty, console shows a `frame-ancestors` error	The page’s real origin does not match the session’s `allowed_origin`	Recreate the session with the origin the page is actually served from
Overlay opens empty, no `frame-ancestors` error, own console error instead	Your page’s Content Security Policy has no `frame-src` for the checkout	Add `frame-src https://pay.boomfi.xyz;` (`pay-test` for test)
`onError` fires `session_not_open`	The session already ended (completed or expired with no payment attached)	Create a new session — an ended one cannot be reopened
`onError` fires `session_not_found`	`clientSecret` names a session that does not exist in this `environment`	Check `init({ environment })` matches where the session was created
`onError` fires `client_secret_invalid`	The string passed to `open()` is not a `client_secret` BoomFi issued	Pass the `client_secret` value from step 2 verbatim, not the session `id`
Overlay shows a generic error inside the frame, no `onError` fires	The payment link’s plan behind the session has expired	Check the payment link/plan status — this is not reported through the SDK
`connect.resume()` returns `false` even though the payment is still going, well after `expires_at`	The SDK drops its stored session at `expires_at`, regardless of the 30-day funded-session window the server keeps	Keep `client_secret` on your server and call `open()` with it again, rather than relying on `resume()`

Next steps

Checkout — the redirect-based alternative to Connect
Webhooks Overview
Event Types
